TATA Structura

The Tubes SBU of Tata Steel manufactures hollow structural steel sections under the brand “Tata Structura”. Tata Structura is manufactured confirming to IS: 4923, IS: 1161 and IS: 3601 for rectangular, square and circular hollow sections.

Tata Structura has multiple segments in construction such as architectural, industrial, infrastructural and other general engineering applications.

Shop Tata Structura Products

Our Products

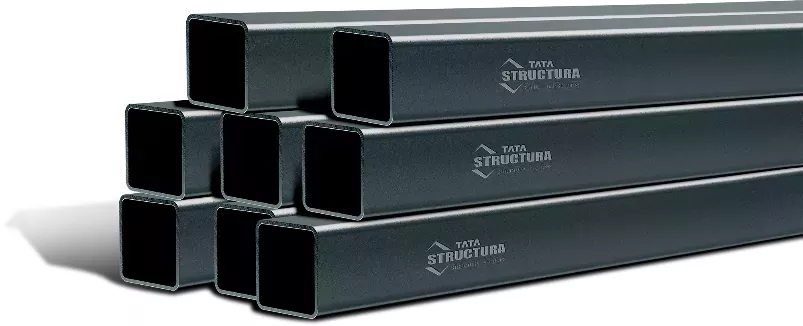

Tata Structura - Structural Steel Tubes

Tata Structura is a brand of high quality steel tubes for structural applications from Tubes SBU, Tata Steel. Its applications vary from Gates, Grilles, Handrails, railings to carparks, garage & roof top sheds.

Tata Structura for the retail market offers a guaranteed yield strength of 210 MPa -ideal for constructing strong and light weight structures. Also, the ductility inherent in Tata Structura allows it to be bent into various curved profiles that opens possibilities of building beautiful designs of sheds, gates etc.

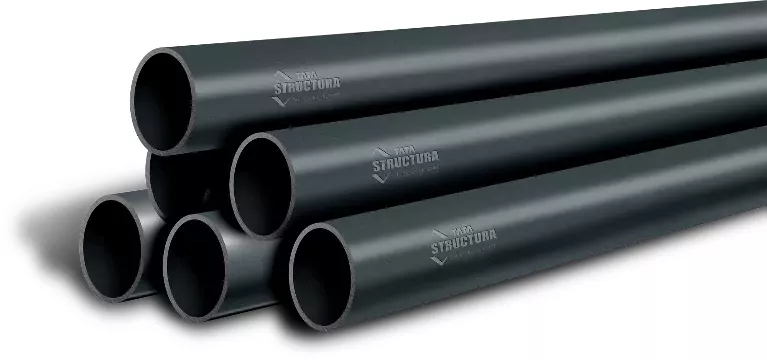

Tata Structura Steel Hollow Sections conform to IS: 3601 & IS: 1161 for Circular, IS: 4923 for Square and Rectangle tubes.

Mechanical Properties:

  1. Yield Strength > 210 MPa

  2. % Elongation > 20%

  • Length:
    6 m, tolerance +/-50 mm
  • Surface Finish:
    Black surface finish without any treatment
  • End Finish:
    Plain Burr Free end
  • Identification:
    Marking of “Tata Structura” emblem on all the tubes along with BIS mark
  • Quantity:
    Weight tolerance +/-10 %
  • Raw Material:
    High Quality Hot Rolled (HR) coils of Tata Steel
  • Twist Tolerance:
    Maximum 2 mm ± 0.05 mm/m length-measured relative vertical shift of any adjacent corner of the section, measured by keeping one side on flat surface.
  • Straightness:
    Minimum 1 : 200th of any length measured along the centre line (mill straightened condition) unless otherwise specifically arranged.



  • Assured strength of tubes:
    Assured minimum yield strength of 210MPa to ensure the tubes can take load of structure enhancing the life of the structure. This also makes it more resistant to seismic activities

  • Best suited for welding:
    Guaranteed quality of wield and strength when using a good electrode to ensure no cracks and ease of welding procedure in minimum possible time

  • Easy to bend:
    Being easily bendable, the tubes can be made into beautiful shapes like curves and arches. As Tata Structura tubes don’t get wrinkled or deformed, rework and wastage is minimal saving labour and time

  • International quality raw material:
    The HR coil used to manufacture tubes are manufactured following international quality principles

  • Certified Quality:
    All the products reaching the market are defect free and bear a test certificate certifying that the product was manufactured as per Indian standards specifications

Tata Structura - Structural Steel Tubes

Tata Structura is a brand of high quality steel tubes for structural applications from Tubes SBU, Tata Steel. Its applications vary from Gates, Grilles, Handrails, railings to carparks, garage & roof top sheds.

Tata Structura for the retail market offers a guaranteed yield strength of 210 MPa -ideal for constructing strong and light weight structures. Also, the ductility inherent in Tata Structura allows it to be bent into various curved profiles that opens possibilities of building beautiful designs of sheds, gates etc.

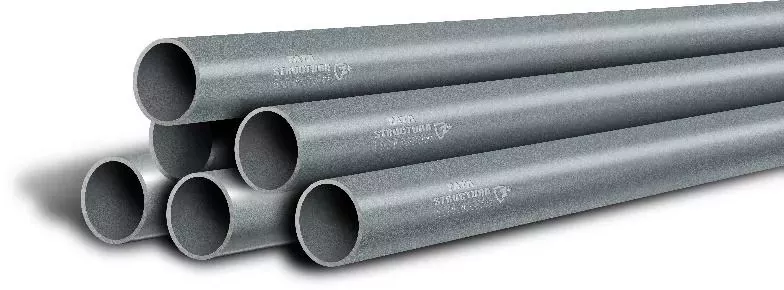

Tata Structura Z+ Steel Tubes are manufactured as per IS (Indian Standards) 1161: 2014, IS 3601:2006 and IS 4923: 1997

Mechanical Properties:

  1. Yield Strength > 210 MPa

  2. % Elongation > 20%

  • Raw Material:
    Sulphur content: 0.05% max, phosphorus content: 0.05% max, equivalent carbon percentage well within specified weldability limits with matching physical properties
  • Surface Finish:
    Hot Dip Galvanized surface with a minimum coating thickness of 360 GSM of pure Zinc
  • Length:
    Tube length is 6.0 m +/- 0.05 m
  • Straightness:
    30 mm(Min. 1/200 of 6m length ) measured from the centre line (mill straightened condition) in uncoated black tubes
  • Twist Tolerance:
    Maximum of 5mm (2 mm ± 0.5 mm/m length)-measured relative vertical shift of any adjacent corner of the section, measured by keeping one side on flat surface
  • End Finish:
    Plain ended-Mechanically sheared, mill-cut finish without further machining
  • Weldability:
    Tata Structura Steel Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating
  • Identification:
    Marking of 'TATA STRUCTURA Z+' emblem on surface, punched/stencilled/sticker pasted, on all Steel Hollow Sections. Standard BIS mark is also put on the sections if appropriate
  • Durable - 3X more life:
    Tata Structura Z+ comes with 360 GSM pure zinc coating which offers 3 times more corrosion protection than local GP tubes
  • High Quality Raw Material:
    The DNA of Tata Structura Z+ is high quality Hot Rolled Steel Coils from Tata Steel with assures yield strength of over 210 MPa
  • Easy to bend:
    Tata Structura Z+ offers the flexibility of building exciting and aesthetically appealing structures. Made of ductile steel, Tata Structura Z+ can be bent into any desired shape
  • Best suited for welding:
    Chemical composition of the steel used in Tata Structura Z+ is best suited for welding, thus ensuring strong joints that makes the structures robust
